22. Semiconductor Devices

Share

22.1 P–N Junction

  • Formed by joining p-type and n-type semiconductors.
  • At junction:
    • Electrons & holes combine → depletion layer formed.
    • Potential barrier created → prevents further flow.

22.2 Semiconductor Diode: Characteristics

(a) Forward Bias

  • P connected to +, N to –.
  • Barrier potential decreases → current flows easily.
  • Current rises sharply after threshold (≈ 0.7 V for Si, 0.3 V for Ge).

(b) Reverse Bias

  • P connected to –, N to +.
  • Barrier potential increases → only small leakage current flows.
  • At high reverse voltage → breakdown occurs.

22.3 Full Wave Rectification

  • Converts AC → DC using two diodes (center tap transformer) or bridge rectifier.
  • Output: Pulsating DC during both half cycles.
  • Efficiency ≈ 81% (greater than half-wave rectifier).

22.5 Logic Gates

  • NOT gate: Output is inverse of input.
  • OR gate: Output 1 if any input is 1.
  • AND gate: Output 1 if all inputs are 1.
  • NAND gate: Output is inverse of AND. (Universal gate).
  • NOR gate: Output is inverse of OR. (Universal gate).

Short Questions and Answers in Short

Q1. What is a depletion layer?
👉 Region around p–n junction with immobile ions, no free charge carriers.

Q2. Define barrier potential.
👉 Small potential across junction that opposes further carrier diffusion.

Q3. What happens when diode is forward biased?
👉 Current flows after threshold voltage.

Q4. What is the condition of diode in reverse bias?
👉 Only a small leakage current flows.

Q5. Why is a diode called a rectifier?
👉 Because it converts AC into DC.

Q6. Write one advantage of full-wave over half-wave rectifier.
👉 Higher efficiency and smoother output.

Q7. What is the threshold voltage for Si and Ge diodes?
👉 Si = 0.7 V, Ge = 0.3 V.

Q8. What are universal gates? Why called so?
👉 NAND and NOR → because any logic function can be implemented using them.

Q9. Write Boolean expression for OR gate.
👉 Y=A+B

Q10. Write Boolean expression for AND gate.
👉 Y=AB

Q11. What is the output of NOT gate if input is 0?
👉 Output = 1.

Q12. State the truth table of NAND gate (for 2 inputs).
👉 Output is 0 only when both inputs are 1, otherwise 1.

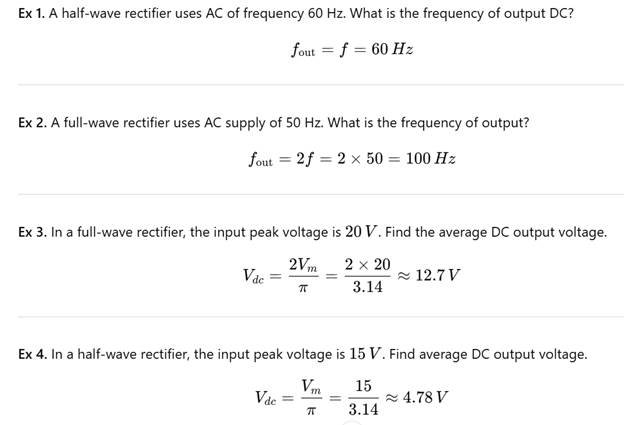

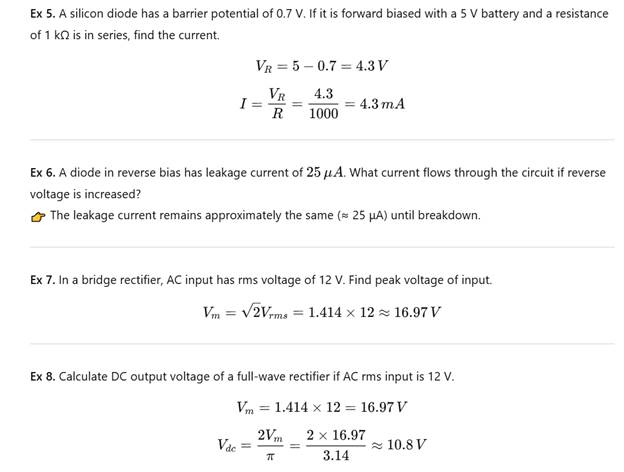

Numerical Examples

image 65
image 66

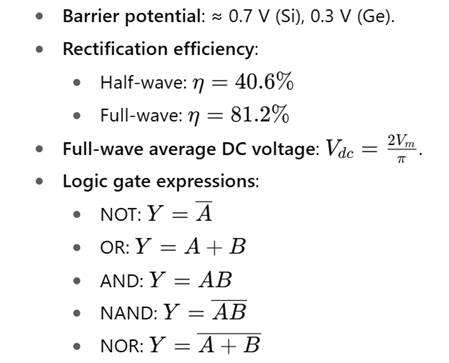

✅ Formula Sheet (Quick Revision)

image 67
